HCA510 Ancient Structure Inclination Sensor High Accuracy Measure Safety dip angle
The HCA518T/HCA528T-N is a high-precision single/dual-axis inclinometer that features a standard industrial electronic output of 4~20mA, allowing for long-distance transmission up to 2000 meters. Utilizing the latest MEMS technology, it offers precise compensation and correction for temperature and nonlinearity errors, with a small measuring range and a maximum accuracy of up to 0.003° (for larger measuring range specifications, please refer to the product technical data).
The HCA518T and HCA528T inclinometers incorporate dynamic zero test compensation technology to ensure quick start-up, high resolution, and stable data, along with excellent shock and vibration resistance. The built-in anti-RF circuit enhances the output signal's resistance to interference. Additionally, this product outperforms similar market products in software technical specifications and reliability. It employs a high-end application-level MCU, a three-proof PCB, imported cables, and a wide-temperature shielded metal enclosure, all designed to improve industrial-level performance and ensure long-term and safe operation in harsh environments.
▶ APPLICATION
★ Equipment vehicle leveling
★ Bridge and Dam monitoring
★ High-altitude platform safety protection
★ Angle control of medical equipment
★ Attitude navigation of underground drilling rig
★ Leveling of railway gauge and gauge
★ Direction measurement based on tilt angle
★ Tilt monitoring of geological equipment
★ Mining machinery, oil drilling equipment
★ Equipment level control
★ Alignment control , curve control
★ Pitch angle measurement of directional satellite communication antenna
▶ TECHNICAL DATA
| HCA518T/HCA528T-N | CONDITION | PARAMETERS | UNIT |
| Measure range | | ±10 | ±30 | ±60 | ±90 | ° |
| Measure axis | | X/XY | X/XY | X/XY | X/XY | axis |
| Zero output | 0° output | 12 | 12 | 12 | 12 | mA |
| Resolution | | 0.001 | 0.001 | 0.001 | 0.001 | ° |
| Measure accuracy | MAXE | Room temp. | 0.005 | 0.01 | 0.02 | 0.03 | ° |
| RMSE | Room temp. | 0.003 | 0.003 | 0.005 | 0.008 | ° |
| Zero Temp. coefficient | -40～85℃ | 0.0005 | 0.0005 | 0.0005 | 0.0005 | °/℃ |
| Sensitivity temp. coefficient | -40～85℃ | ≤100 | ≤100 | ≤100 | ≤100 | ppm/℃ |
| Power on time | | 0.5 | 0.5 | 0.5 | 0.5 | S |
| Sensitivity temp. coefficient | 20Hz |
| EMC | According to EN61000 and GBT17626 |
| MTBF | ≥50000 hours/times |
| Insulation Resistance | ≥100MΩ |
| Shockproof | 100g@11ms,3 Axial Direction (Half Sinusoid) |
| Anti-vibration | 10grms,10～1000Hz |
| Protection glass | IP67 |
| Cables | Standard configuration: 2m length, wear-resistant, wide temperature, shielded cable 7P * 6.8mm aviation connector, cable weight ≤110g |
| Weight | ≤250g(Excluding cable) |
▶ FEATURES
★ Single / dual axis inclination measurement
★ Range ± 1～± 90° optional
★ Accuracy: Refer to technical data
★ Wide voltage input 9～36V
★ Output mode 0～5V
★ Wide temperature operation -40 ℃～+ 85 ℃
★ IP67 protection
★ High vibration resistance> 2000g
★ High resolution 0.001 °

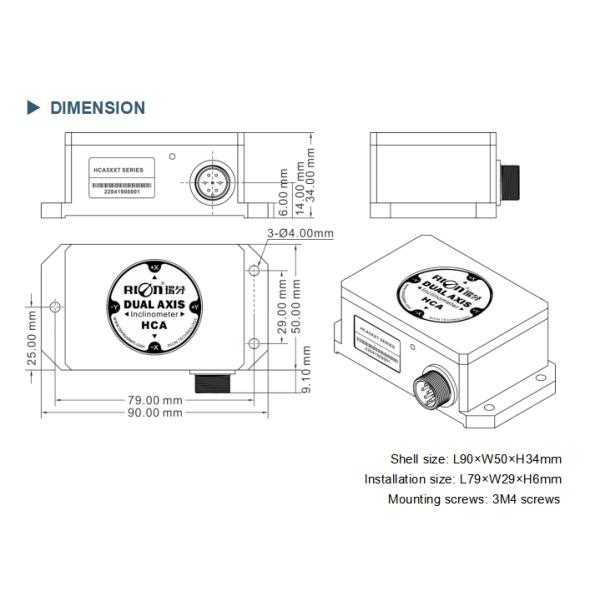

★ Small size L90 × W59 × H34mm
