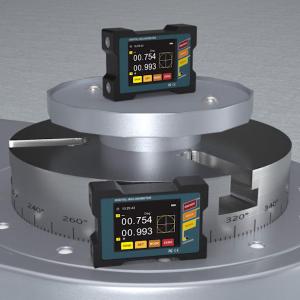

Wireless Bluetooth Digital Inclinometer For Industry Platform Control Bluetooth Angle Monotoring
▶ GENERAL DESCRIPTION
DMI810-46-BT development professional for all kinds of industrial equipment platform Angle through bluetooth reading measurement data of a digital tilt, ensure the long-term stability and repeatability. Single axis measurement, measurement range ± 46° measurement, resolution 0.001°, the highest accuracy <0.03° full range, fast response speed, stable data, the product special design side and the following are strong magnetic adsorption installation.
▶ FEATURES
★ Best accuracy:<0.03°
★ Repeatability:0.03°
★ Angle resolution:0.001°
★ Maximum measure range:±46°
★ User can set the alarm value by himself
★ Data store function
★ Absolute/Relative measurement can switch
★ Both sides and bottom can measure
★ Double benchmark strong magnet installation
★ Working Temperature : -10°～ +70℃
★ Auto-angle interleaved compensation function
★ Automatic angle cross compensation
★ User can calibrate ZERO by himself
★ Built-in rechargable industry batteries
★ Night vision fours colors screen
★ IP54 protection class
★ °/mm/m Dual units switch function
★ Filter frequency optional
★ Three kinds of measurement mode selectable (radian, angle, mm)
▶ APPLICATION
★ Building construction
★ Automobile four-wheel testing
★ Road slope
★ Machinery installation
★ Piping installation
★ Industrial platform
★ Pan tilt angle monitoring
★ Turntable monitoring
★ production fixtures
★ medical instruments
 DMI810-46-BT | Parameters | Unit |
| Measure axis | single axis | axis |
| Angle measure range | ±46 | ° |
| Angle measure accuracy ( full measure range ) | <0.03 | ° |
| Angle measure resolution | 0.001 | ° |
| mm/m measure range | 1035 | mm/m |
| mm/m measure accuracy | 0.5 | mm/m |
| mm/m measure resolution | 0.02 | mm/m |
| Repeatability | 0.03 | ° |
| Measure mode | Angle,Degree/Minute/Second,Mm/m Three modes can be set |
| Working Temperature | -10℃～ +70℃ |
| Working Humidity | 85%RH |
| Power supply | 3.7V Charging Lithium Battery |
| Ideal Charging Time | 5 hours |
| Battery Continuous Working Tim | 11小时( Non bluetooth ) |
| Data output signal | USB2.0 (Virtual serial device) and Bluetooth read transmission |
| Match with PC software | VC programm software |
| Connect plug in | Standard Usb Connector, Rechargeable |
| Shock Resistance | 10g@11ms,3 Axial Direction (Half Sinusoid) |
| Shock Impact | 10grms,10～100Hz |
| Waterproof Grade | IP54 |
| Material | Aluminum Alloy Anodizing |
| LCD screen | 64 True Colors Night Vision Display Screen |
| LCD Visible Area Size | L57.6*W43.2mm |
| Bluetooth size | L24.57×W11×H67.07mm |
| Bluetooth weight | ≤40g |
| Digital inclinometer size | L109×W77×H27mm |
| Digital inclinometer weight | ≤350g |
