IP54 CE Dual Axis Digital Protractor DMI420 Angle Meter

Metal Dual Axis Digital Protractor Calibration IP54 angle meter High Accuracy Digital Inclinometer

General Description

DMI420 is a digital display inclinometer which took RION company three years to develop professional for various industy angle controling and measuring.Thecore of this product is using the micro-mechanical control principle, dual-core measurement unit,can use the Y-axis to compensate X-axis during the measurement process,and then to use RION patent interleaved and temperature compensation model algorithm to play absolute operation advantages of the micro-mechanical electronic principles,to ensure that the instruments measurement with the long-term stability and repeatability. DMI420 is a uniaxial 360deg measurement, resolution 0.01 °,accuracy <0.1 degree full-scale,fast response, stable data, products specially designed for the sides and bottom with magnetic adsorption installation, both sides of the benchmark can be measured and using normally,very convenient to use, In addition, supporting the selection of DMI420 (SMI420) with the use of separate measurement, used in combination with the Division LCA series tiltsensor, the transmission mode wireless or wired optional, wireless using one-to-one band transmission, transmission straight line distance> 10m, the cable transmission standard 1 meter (can be customized long distance), DMI420 series has strong scalability, convenient & practical application and industrial reliability, has absolute cost advantage and has an absolute competitive advantage in the international market !

Features:

• Accuracy:0.05°
• Repeatability:0.05° Resolution:0.01°
• Measuring range:±90°
• Fast response
• Data hold on function
• Absolute/Relative measurement can switch
• Both sides and bottom can measure
• Double benchmark strong magnet installation
• Working Temperature : -20°~ +65°C
• Auto-angle interleaved compensation function
• Auto temperature drift compensation
• User can calibrate by himself
• Built-in rechargable industy battaries
• Night vision fours colors screen
• IP54protection class
• °/mm Dual units switch funciton
• 100g High anti-impact

Application :

• Road slope
• Machinery installation
• Piping installation
• Industrial platform
• Turntable testing
• Cloud deck angle detection
• Production jig
• Medical instruments
• Building construction Automobile four-wheel testing

▶ TECHNICAL DATA

PARAMETERS	DMI410 DMI420
Angle measure range	±180 °	±90 °
Length measure range	0~±999.9mm/m	0~±999.9mm/m
Measure axis	Single axis	Dual axis
Angle measure accuracy	0.05 °(full range)	0.05 °(full range)
Angle measure resolution	0.01°	0.01°
Length measure accuracy	0.9mm/m(full range)	0.17mm/m(full range)
Length measure resolution	0.17mm/m	0.1mm/m
LCD visible area size	L40*W32mm
Working temperature	-10℃～ +70℃
Working humidity	85℃
Power supply	3.7V Charging Lithium battery
Ideal charging time	3h
Battery continuous working time	8h(±0.5)
Data output signal	Standard 5Pin USB connector
Anti-vibration	10g@11ms,3 Axial Direction (Half Sinusoid)
Impact resistance	10grms,10～100Hz
Weight	125g
Waterproof level	IP54
Material	Metal aluminum
Size	L83*W53*H19.2mm

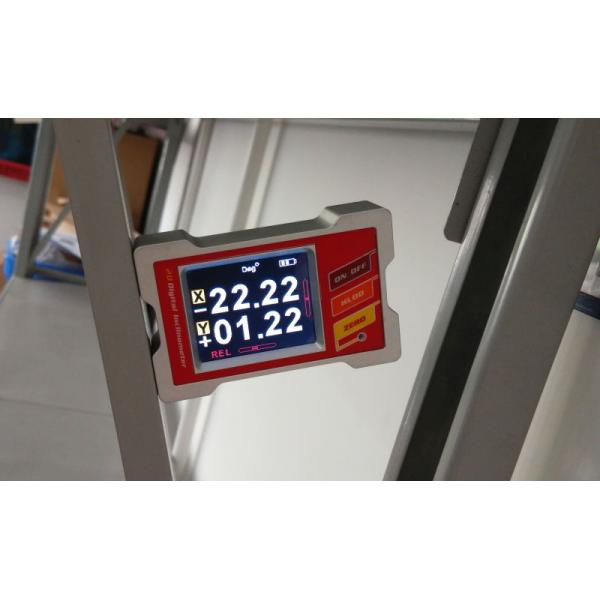

Product & Packing Photos :

Certificates & Test Reports :

Order Process :

Before order pls contact us for confirm detailed informaiton such as model ,price ,lead time ...etc .

Payment ways :

T/T, WU or Paypal;

Delivery methods & Time :

DHL takes 3-5days , Fedex takes 2-7 days , UPS takes 3-7day , EMS takes 10-25days ;

Quality Policy :

We gurantee 1 year in free charge .

Storage :

Note usually we don't make any items in stock , samples customize time need around 3-7days .
